BTS Purlin Anchor Points 360° Swivel Eye Grade 316 Stainless Steel 2 Workers Rated

Purlin Anchor

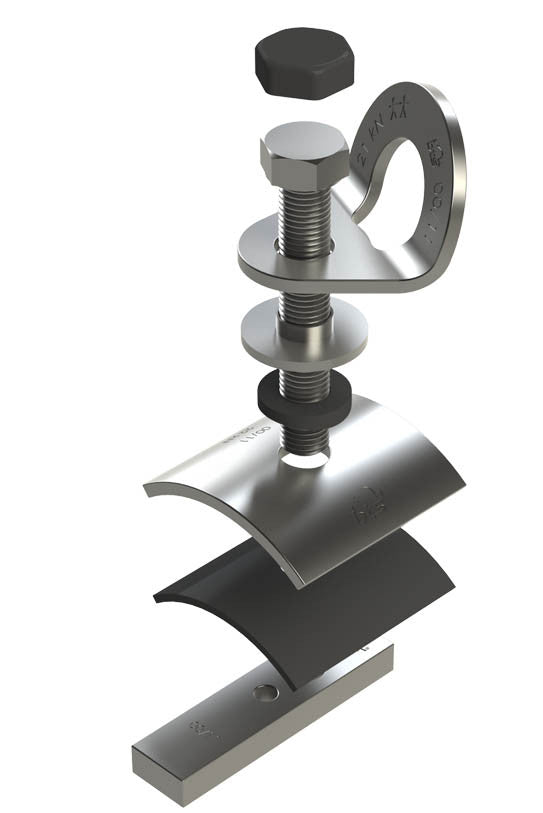

The range of Purlin Mounted Anchor Points from BTS are a cost effective solution for working at heights on structures with steel roof sheeting that is affixed to a steel purlin.


The BTS Purlin Mounted Anchor Points are designed for ease of installation allowing the unit to be installed from above or below the roof sheet
360° swivel eye eliminating the twisting of ancillary static lines and lanyards
Enlarged swivel eye capable of accommodating main PPE providers
Grade 316 Stainless Steel construction
Architecturally inconspicuous
Complete with neoprene gasket


    Ultimate Strength Rating: 21kN
    Capacity (Fall Arrest): Max. 2 workers weighing not more than 141kg each.
    Allowable MAF Rating for SRL's: 4 kN


    Part No. Description To Suit
    BTS 162 S/S 316 Safety Anchor Trim Deck Purlin Mount Trim Deck / Long Span Metal deck roofing
    BTS 160 S/S 316 Safety Anchor Corrugated Purlin Mount Custom Orb Metal Deck Roofing
    BTS 161 S/S 316 Safety Anchor Flat Purlin Mount Flat Metal deck roofing
    BTS 162NZA S/S 316 Safety Anchor Trim Deck Purlin Mount Trim Deck / New Zealand Profile
