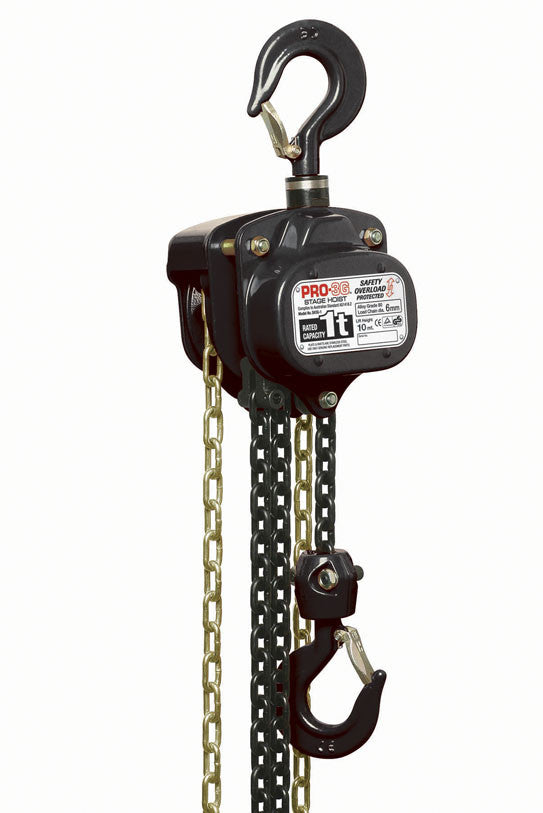

BTS Product Code: 800110EB - 1T PRO-3G black powder coated chain block with 10m height of lift and 10m hand chain.
A reliable, quality chain hoist to suit most applications for lifting and stage rigging with the added security of overload protection.
Features & Benefits
- Patent Pending unique overload feature ensures protection for the operator from serious injury and possible damage to the structure if the load exceeds the hoists’ capacity.
- The unique design allows the load to be lowered easily in the event of an overload occurring.
- All steel construction with an enclosed gear box and mechanism for long life and durability.
- Weather protected Weston brake complete with asbestos free brake discs.
- The braking system includes two brake pawls engineered and positioned for additional safety.
- The load chain is Grade T(80) alloy steel, black finished, heat treated and calibrated. Complies with AS1418.2.
- Hand chain has corrosion resistant Zinc dichromate (Gold) finish.
- Stainless steel identification plate secured with brass rivets.
- The load chain end stop design helps ensure load integrity.
- Thrust roller bearings are fitted to the bottom hook to allow the load to swivel smoothly and easily when under load (as per Australian standard requirements).
- Both hooks are fitted with cast steel safety latches.
- Each hoist has an individual, traceable serial number and is supplied with a Test Certificate.
- Durable powder coated finish.
Options
- Chain bags to suit various lift heights available.
- Extra lift heights for load chain and hand chain are available on request.
| Product Code | SH3G-1 | ||
|---|---|---|---|
| Rated Capacity | tonne | 1 | |
| Standard Lift | m | 10 | |
| Falls of Chain | 1 | ||
| Effort to lift Rated Capacity | N | 309 | |
| Test Load | kN | 12.5 | |
| Net Weight | Kg | 11.9 | |
| Load Chain Diameter | mm | 6 | |
| Weight per extra metre lift | Kg | 1.8 | |
| Clearance Dimensions | |||
| A | mm | 143 | |
| B | mm | 156 | |
| C | mm | 317 | |
| D | mm | 27 | |
